Passmores has been creating equestrian buildings for over 100 years



Our Classic Equestrian Range, developed over the last 45 years, offers excellent value for money and a specification unrivalled by most manufacturers.

Not to be confused with the economy grade, inferior products by many of our competitors, our classic stables are designed for the serious equestrian and are proven to last a lifetime.

CHOOSE FROM A WIDE RANGE OF EQUESTRIAN BUILDINGS STYLES AND SIZES

Timber Loose Boxes, Tack Rooms and Haystores

Timber Loose Boxes, Tack Rooms and Haystores

Specification:

  • 4 x 2 CLS (38 x 89) framework
  • 19 x 125 joinery grade pressure treated shiplap cladding
  • 2.15m high x 1.2m wide door
  • 2.375m eaves height (including 1 course of bricks)
  • Scissor trusses spaced at 0.6m centres in boxes giving up to 2.875m headroom
  • 1.2m canopy lined with 16 x 125 tgv
  • 15mm plywood kickboards to 1.20m height
  • High performance green mineral roofing felt
  • Tile and slate roof options available


To receive a detailed quotation please forward a sketch plan showing the general layout of your requirements to [email protected] or simply call us on 01634 290033.

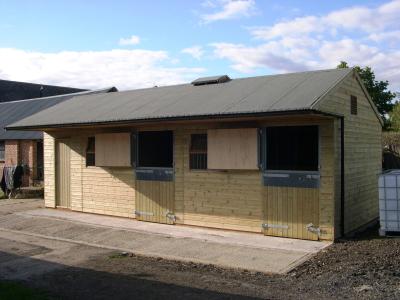

2 no. 3.6m x 3.6m (12' x 12') Loose Boxes and 1.8m x 3.6m (6' x 12') Tack Room

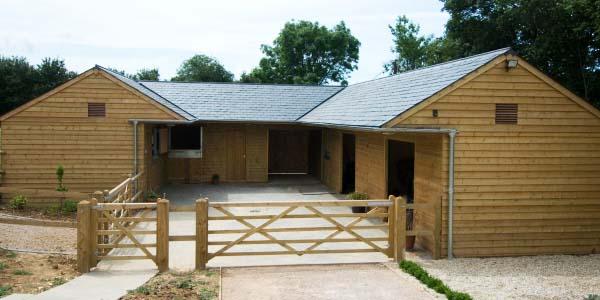

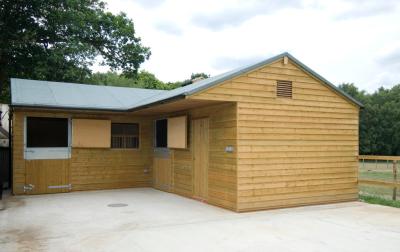

4.2m x 3.6m (14' x 12') Loose Box, 5.4m x 3.6m (18' x 12') corner Loose Box and 3.0m x 3.6m (10' x 12') Tack Room

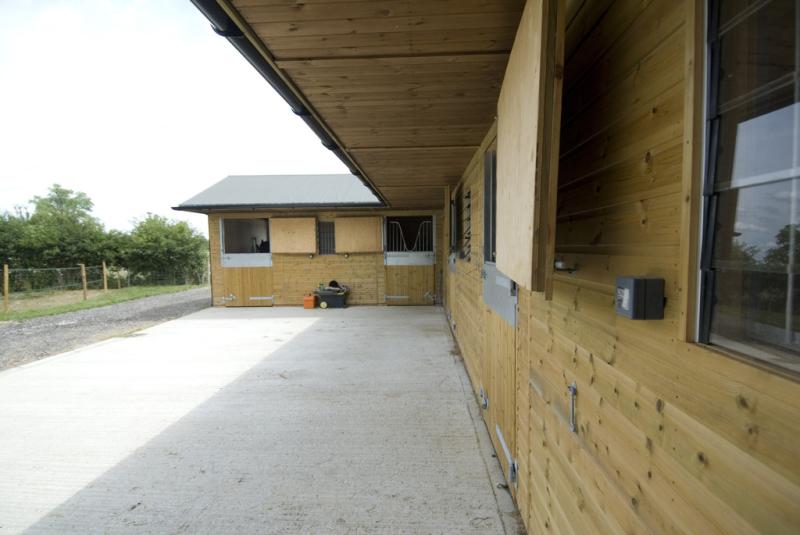

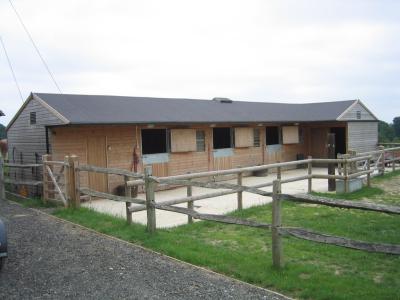

3 no. 3.6m x 3.6m (12' x 12') Loose Boxes, 6.0m x 3.6m (20' x 12') corner Hay Store and 3.0m x 3.6m (10' x 12') Tack Room

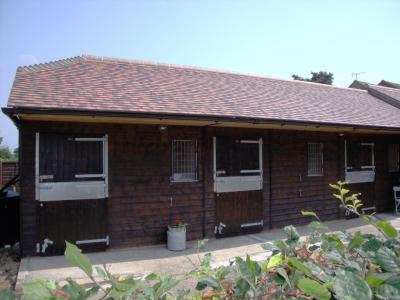

3 no. 3.6m x 3.6m (12' x 12') Loose Boxes with 35° pitch plain tile roof
DOWNLOAD Price List
DOWNLOAD Price List
DOWNLOAD Brochure
DOWNLOAD Brochure
VIEW Gallery
VIEW Gallery

We offer 4 standard sizes of Loose Box:

  • 3.0m x 3.6m (10' x 12')
  • 3.6m x 3.6m (12' x 12')
  • 4.2m x 3.6m (14' x 12')
  • 5.4m x 3.6m (18' x 12') corner Loose Boxes are supplied for "L" and "U" shaped complexes.

Stable doors are 2.15m high x 1.2m wide. Construction is from 25 x 125 pressure treated redwood t&g boards on 38 x 150 ledges and braces with 15mm plywood lining. Galvanised ironmongery includes 450mm hook and band hinges, 200mm brenton bolts and kick over latch. Anti bite protection is fitted to upper door jambs, upper door hinge edge and top of lower door.

Windows are 935mm x 1110mm hopper style with galvanised welded steel grill.

Gable end ventilation is built in as standard on each building and 1 ridge ventilator is supplied for every 2 loose boxes which, when combined with the opening window, promotes a draft free upward flow of air.

A Passmore Tack Room is built to the same high specification as our Loose Boxes and available in the following sizes:

  • 1.8m x 3.6m (6' x 12')
  • 2.4m x 3.6m (8' x 12')
  • 3.0m x 3.6m (10' x 12')

A Tack Room can also be incorporated in the corner of "L" and "U" shaped complexes.

For security purposes a Tack Room is supplied without window, partitions are lined to ridge and door is framed, ledged and braced and fitted with a mortice sash lock.

Internal lining in 12mm plywood is available at additional cost.

Hay Stores come in a wide range of sizes including corner units.

The entrance size is 2.05m high x 2.3m wide and standard buildings are supplied unlined.

As a guide a 3.6m x 3.6m (12' x 12') Hay Store can accommodate approximately 90 standard size bales if stacked tight.

If required the open entrance can be replaced with a pair of side hung timber garage doors to provide secure storage.

The front wall can be moved forward in line with the front edge of the canopy to increase floor area by a third.

Mobile Field Shelters

Mobile Field Shelters

These versatile buildings are available in a range of standard sizes.

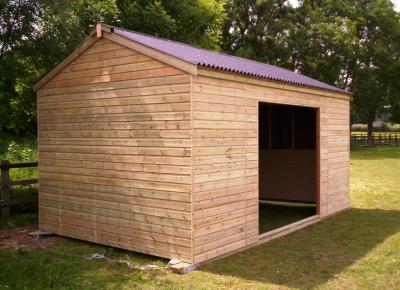

5.4m x 3.0m (18' x 10') Mobile Field Shelter

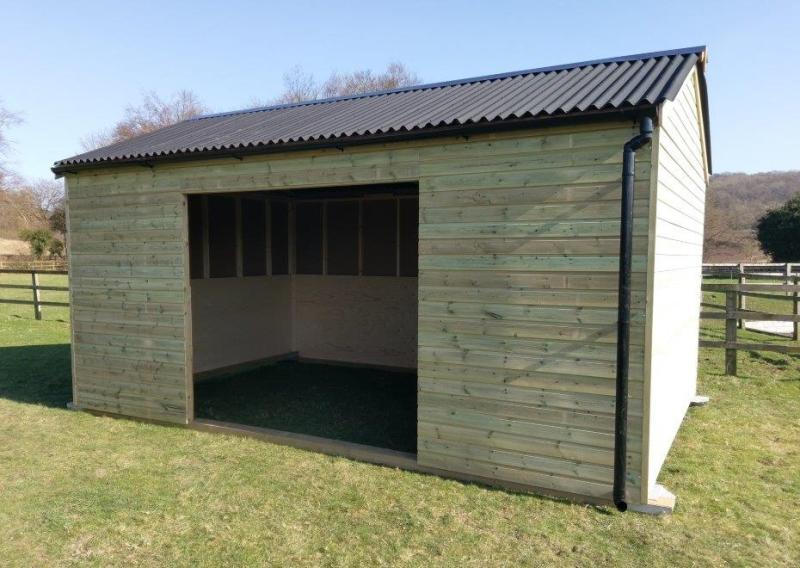

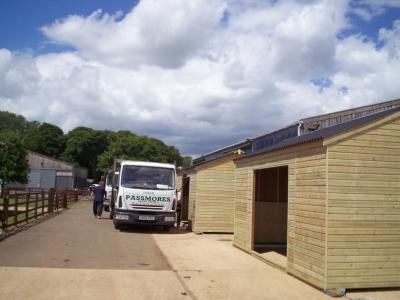

Row of 6 5.4m x 3.6m (18' x 12') Mobile Shelters for the Blue Cross animal charity

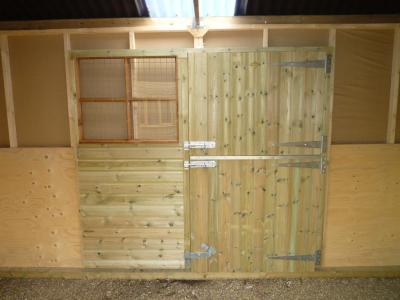

Door and window conversion panel

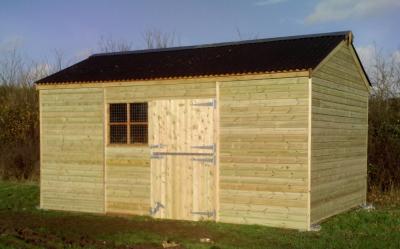

5.4m x 3.0m (20' x 10') Mobile Field Shelter with door and window conversion panel fitted
DOWNLOAD Price List
DOWNLOAD Price List
DOWNLOAD Brochure
DOWNLOAD Brochure
VIEW Gallery
VIEW Gallery

Construction is from 3 x 2 CLS (38 x 63) framework, 19 x 125 pressure treated shiplap and black Onduline roof. Eaves height is 2.3m and entrance size is 2.05m high x 2.3m wide.

Buildings are lined to 1.2m height in 12mm plywood. The base is constructed from 75 x 150 pressure treated timber skids with 300 x 60 x 6 galvanised steel bracketry through bolted to provide exceptional rigidity when towing.

Chains, shackles and tow hitch plate are also supplied.

Clear Onduline roof panels, guttering and a Loose Box door and window conversion panel can be specified.

Frequently Asked Questions

This will usually depend on the size, height and location of the proposed new building.

If you are positioning the building close to a boundary or in front of the building line of your home when viewed from the road, then planning consent is usually required.

If the building is to be behind the house, more than 2.0m from a boundary and provided the ridge height is less than 4.0m, then you may not need permission, assuming it is for non business use. Most garden sheds and chalets therefore do not need local authority permission.

However, if you live in a listed property or within a conservation area then planning permission is nearly always required.

The Government Planning Portal www.planningportal.gov.uk contains a wealth of additional information and includes an interactive guide covering most circumstances.

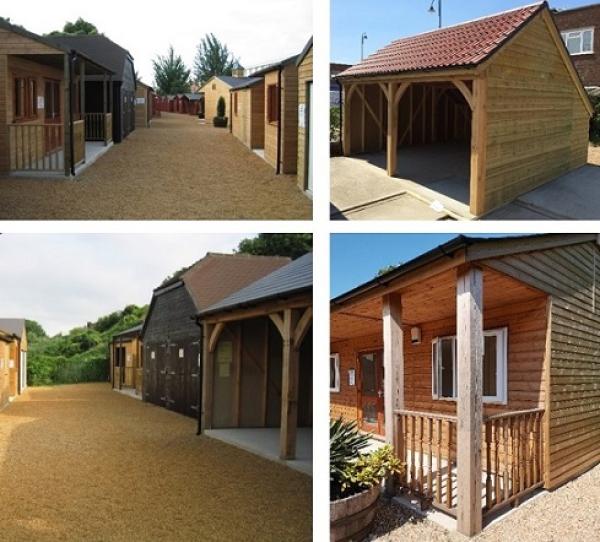

We have over 35 buildings on display in our showground village in Strood, Kent. As well as a full range of Garden Buildings we also display examples of single and double Garages, Carriage Houses, Open Barns, Equestrian buildings and a Club Range with verandah.

Our opening times are Monday - Friday 9.00am - 5.30pm and Saturday 9.00am - 1.00pm. Informed staff are always on hand to answer any questions and offer advice.

If you are interested in viewing a Garage, Carriage House, Club Range or Equestrian building and would prefer not to travel to Kent we may be able to find you a suitable viewing address in your area, in which case please contact us on 01634 290033 with your details.

For Garden Buildings i.e. Sheds, Chalets and Workshops, delivery is free to postcode areas ME, DA, CT, TN, SS, RM and BR and we offer an erection service in these areas. For delivery outside these postcode areas please refer to the Delivery Map.

We deliver Garages, Carriage Houses, Open Barns, Club Range and Equestrian buildings throughout the UK. Delivery is free to most destinations in the South East and outside this area a scaled charge applies depending on your distance from us (see Delivery Map). We offer an erection service in Zones 1, 2 & 3 with published prices for zones 1 & 2 and prices on application for zone 3.

Goods delivered within the mainland UK carry a 12 month warranty against faulty materials or workmanship.

Normally any defect will show in the first few months of the buildings life as it settles onto its foundation.
